CQD

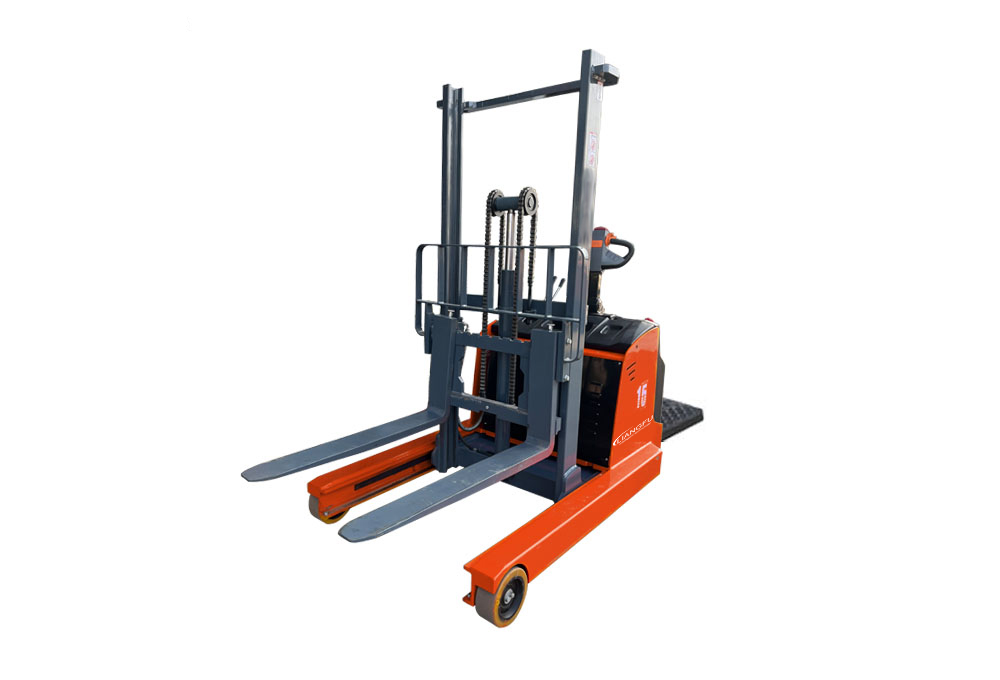

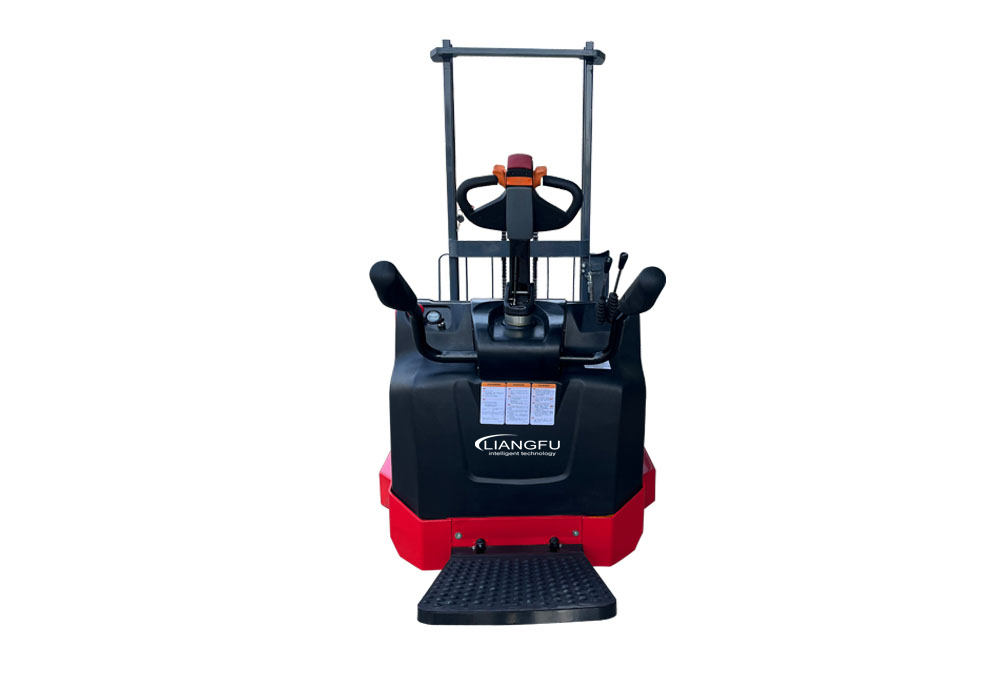

The CQDS series is a smart reach truck. The mast can move forward along the inner track of the support legs with the mast, providing a smaller passage experience; with a carrying capacity of 1.5t-2.0t.

Application scenarios：

Medium to long distance handling and stacking；Horizontal handling and stacking of medium load goods；

Closed pallets, low ground clearance of pallets, and no legroom at the bottom of shelves.

Power form:Battery

Driver type:Standing

Rated loading:1500/2000kg

Loading center:500mm

Lifting height:3000mm

Height(mast at low):2010mm

Fork size:1070*100*35mm

Ground clearance:50mm

Driving speed(full load/no load):4/5.8km/s

Slope(full load/no load)：6%/8%

Driving motor:1.5kw

Lifting motor:2.2kw

Battery:24V/210Ah
