CDD

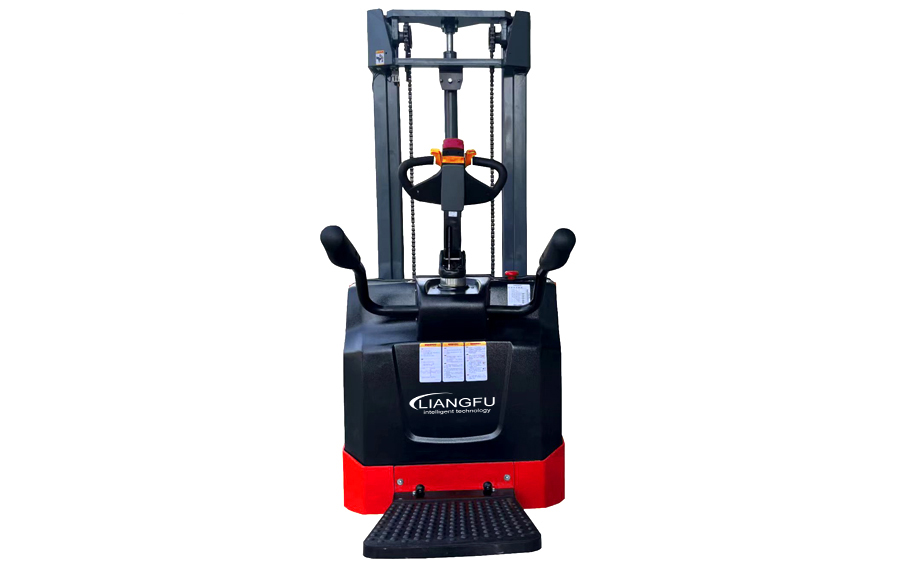

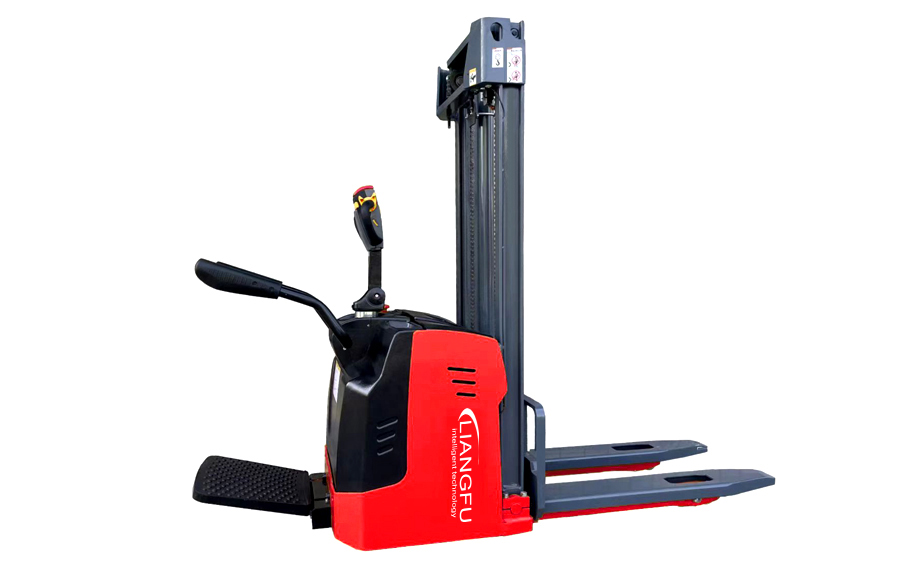

The CDD series is a standing driving stacker truck with a rated load capacity of 1500kg, 2000kg, and 2500kg. It is generally used in warehouses, floors, containers, and other places that require logistics handling and stacking. When used in conjunction with pallets, it can greatly improve the efficiency of warehousing.
Application scenarios:
Horizontal handling goods and stacking of heavy-duty
Medium to long distance handling and stacking
Suitable for handling and stacking palletized goods in warehouses, supermarkets, and workshops

Power form:Battery

Driving type:Standing

Rated loading:1500/2000/2500kg

Loading center:500mm

Wheelbase:1400mm

Hight(mast at low):2030mm

Lifting height:3000mm

Length(Pedal retract):2060mm

Width:850mm

Driving speed(full load/no load):5/6km/h

Driving motor:1.5/2.2kw

Lifting motor:2.2/3.0Kw

Battery:24V/210Ah

Steering:EPS
